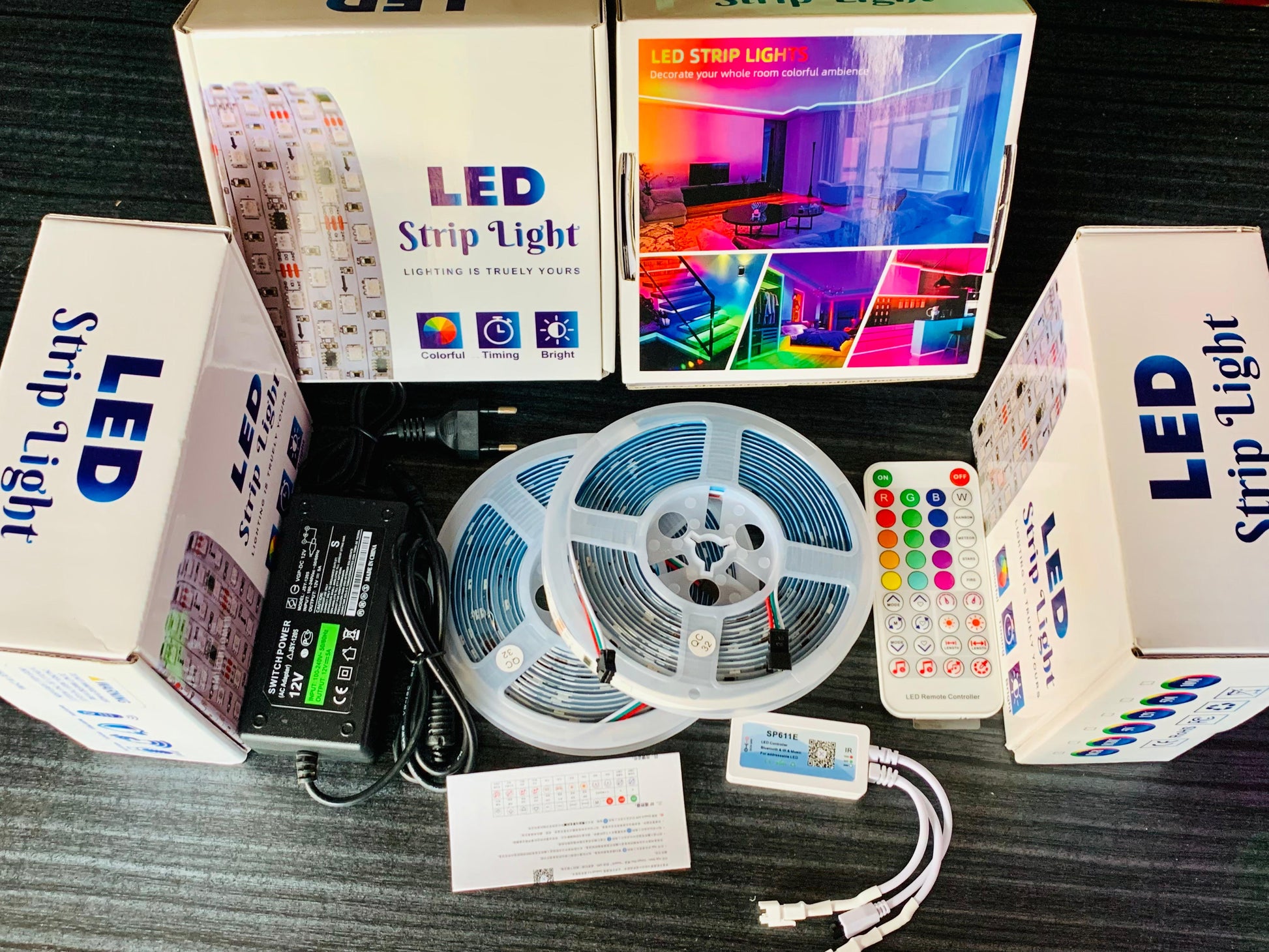

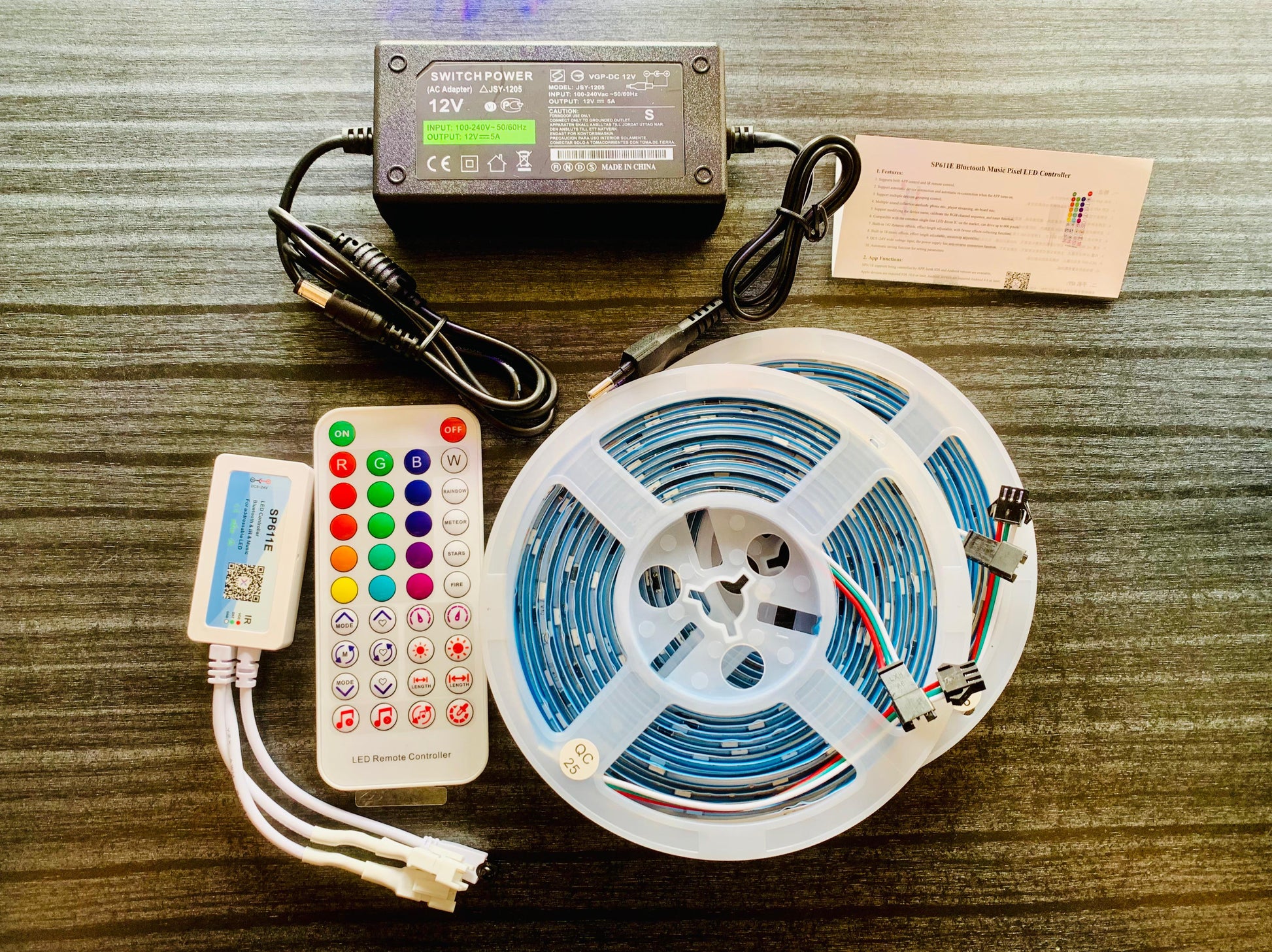

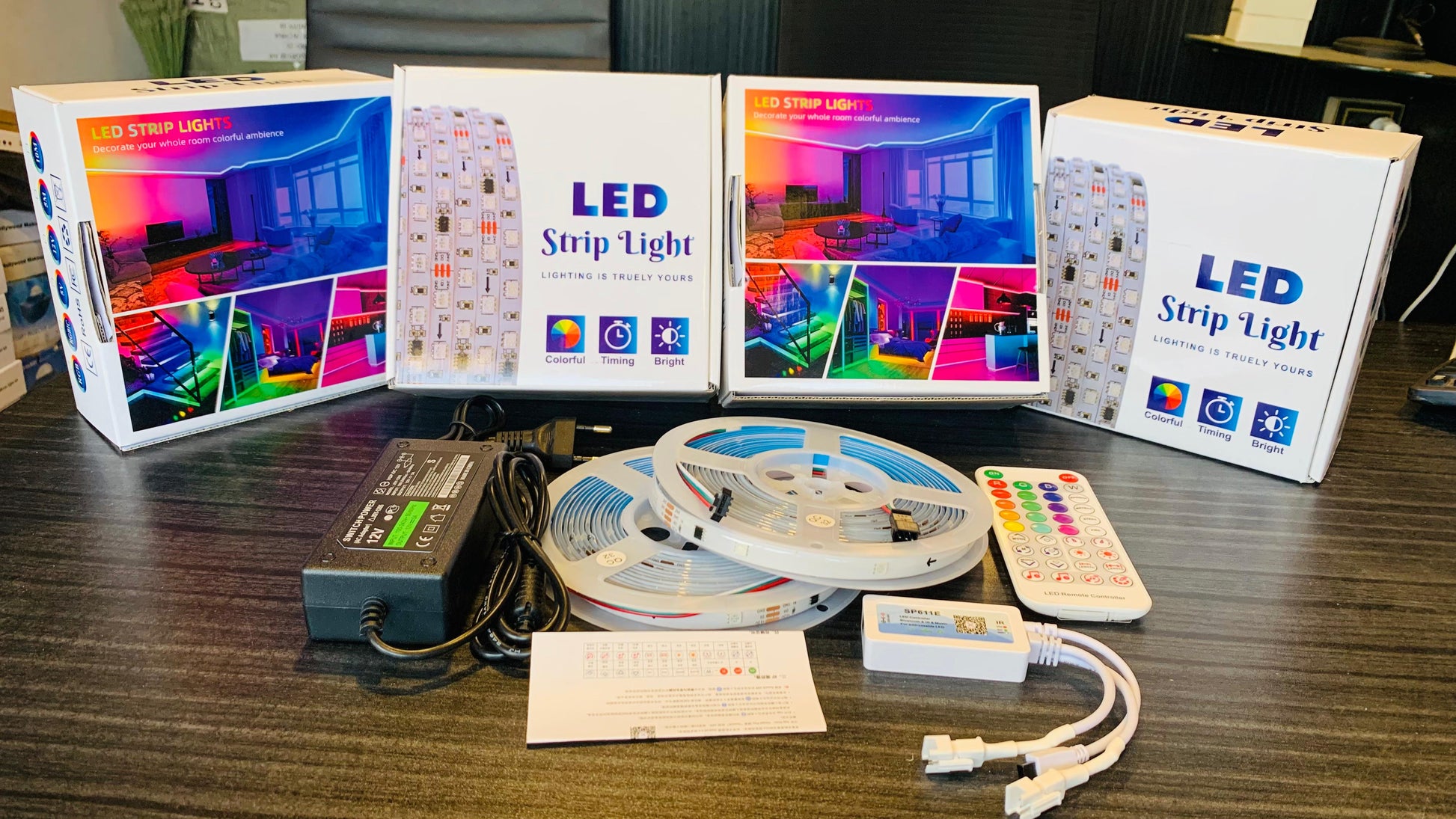

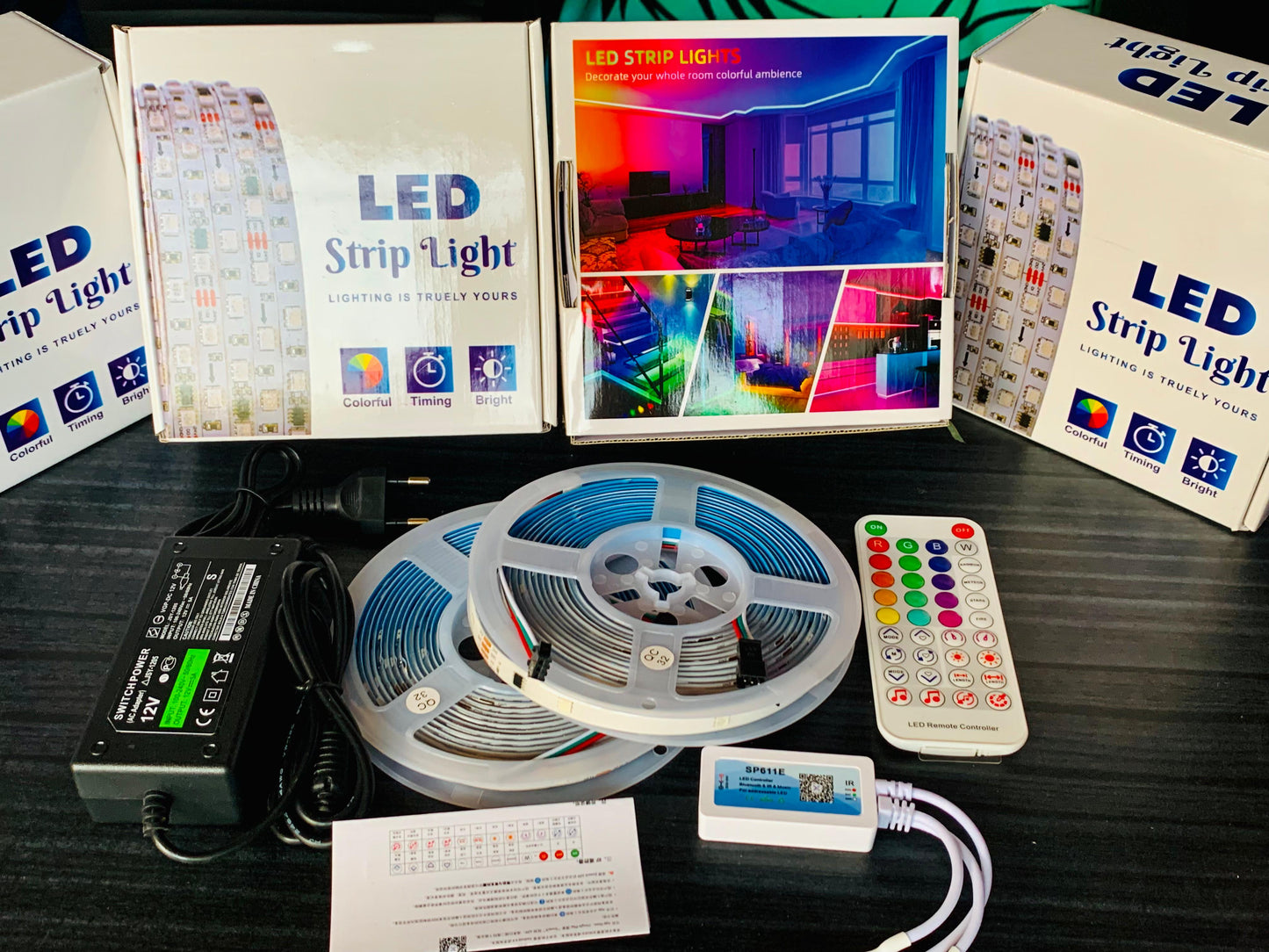

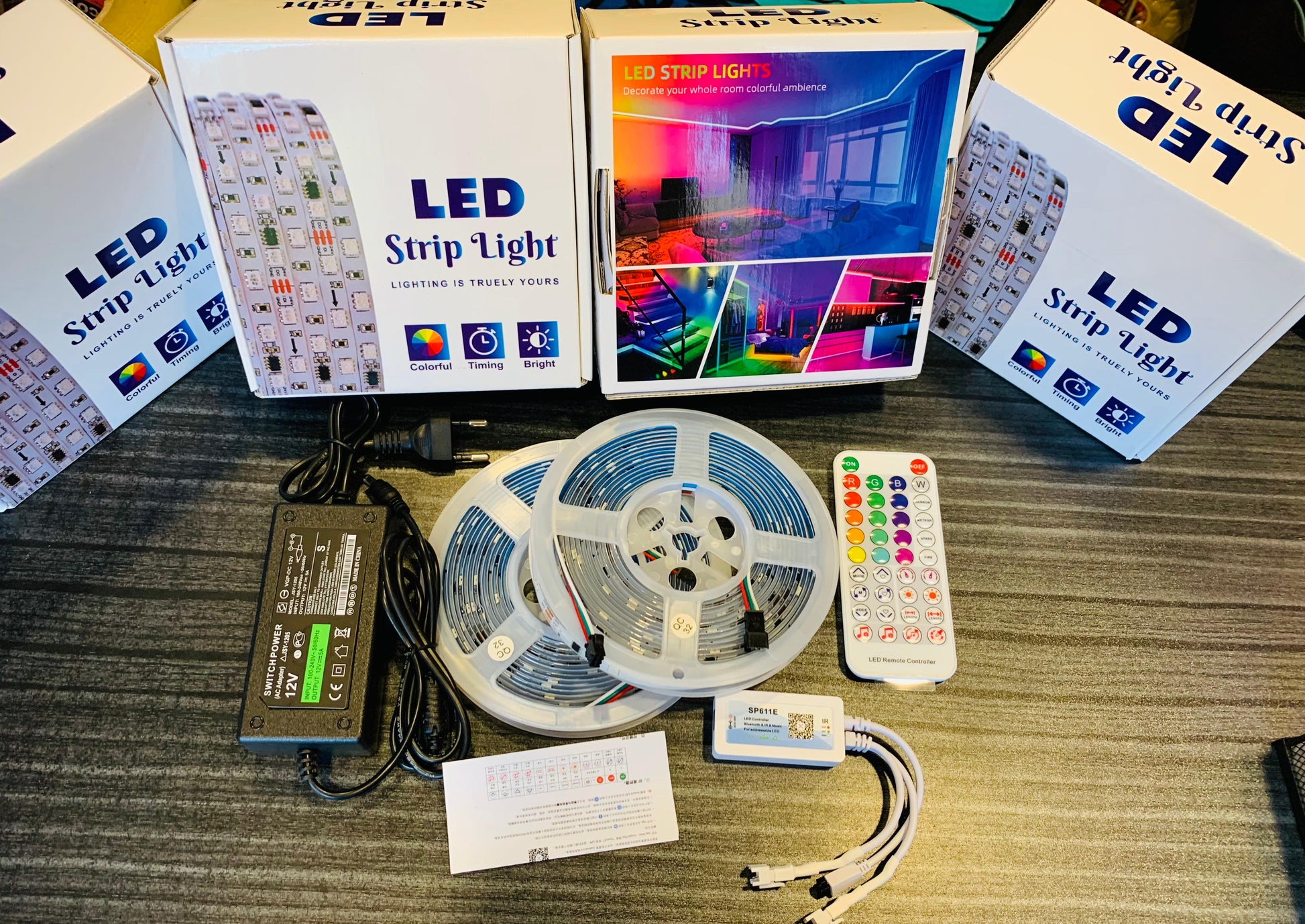

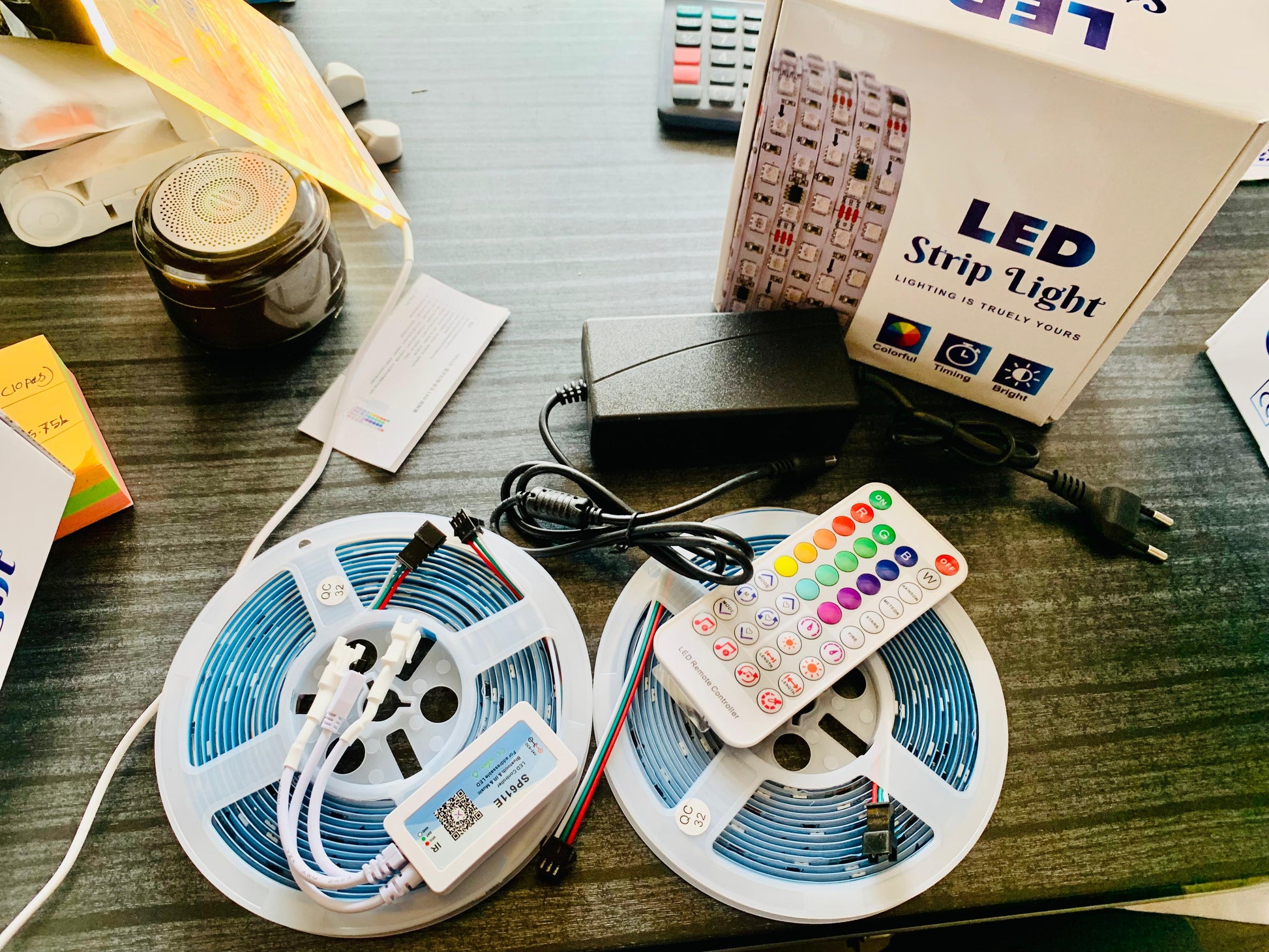

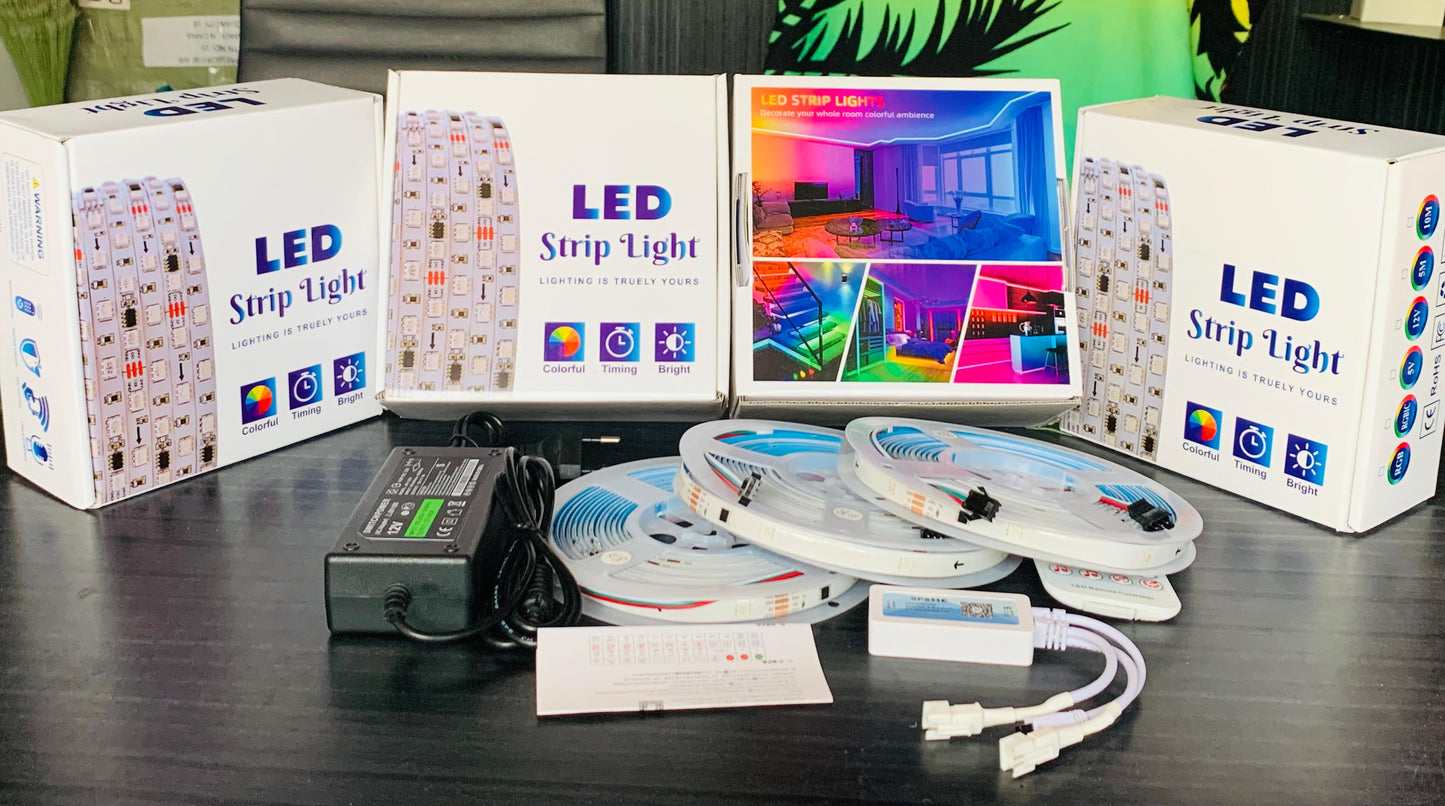

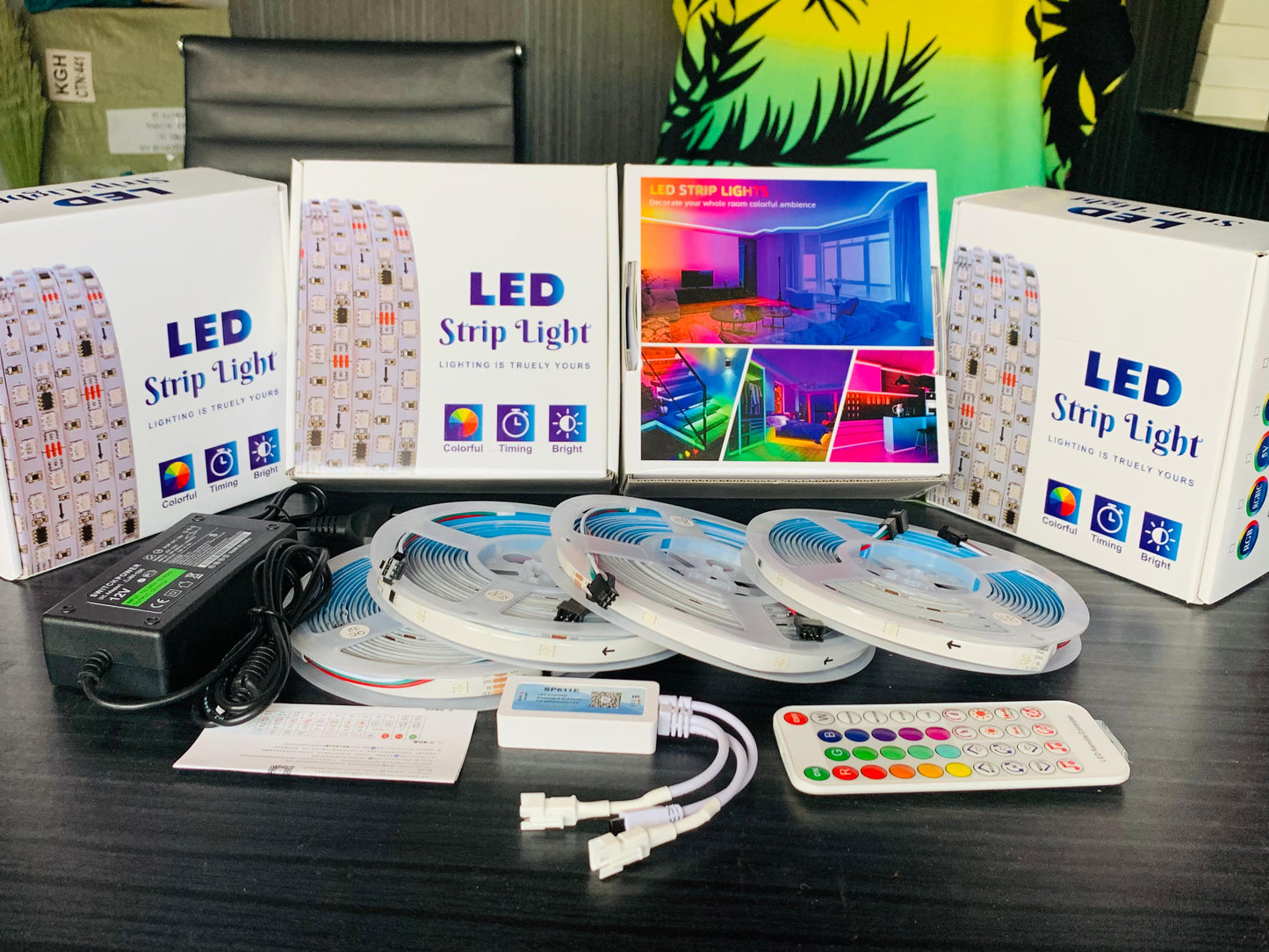

RGBIC LED Strip Light Kit with Smart Controller

Size and Dimensions

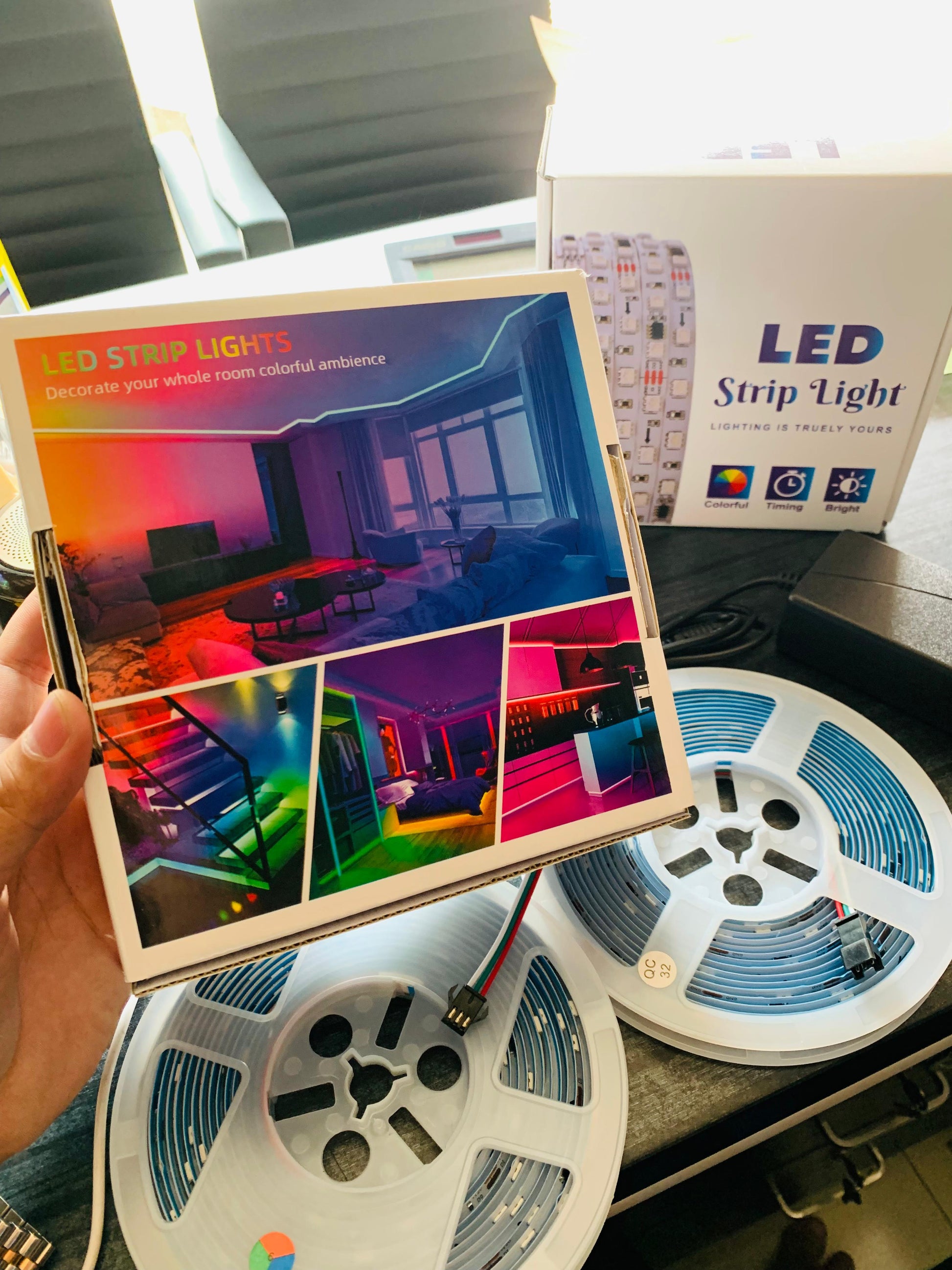

Total Strip Length: 10 Meters (Two rolls of 5 meters each)

Strip Width: 10 Millimeters

Power Adapter Cord Length: 1.2 Meters

Controller Receiver Cable Length: 15 Centimeters

Full Material and Technical Specifications

Substrate Material: Double-sided flexible copper PCB circuit board for optimal heat dissipation

Protective Coating: Flexible clear anti-static polyimide resin surface layer

Light Source Type: Premium SMD 5050 RGB multi-color LED chips

Power Adapter Input: AC 100V to 240V, 50 or 60Hz universal mains input

Power Adapter Output: DC 12V 3A constant voltage power supply brick with EU plug

Backing Adhesive: Authentic high-bond 3M self-adhesive backing tape

Control Hardware: SP611E smart Bluetooth receiver hub with physical button and inline microphone

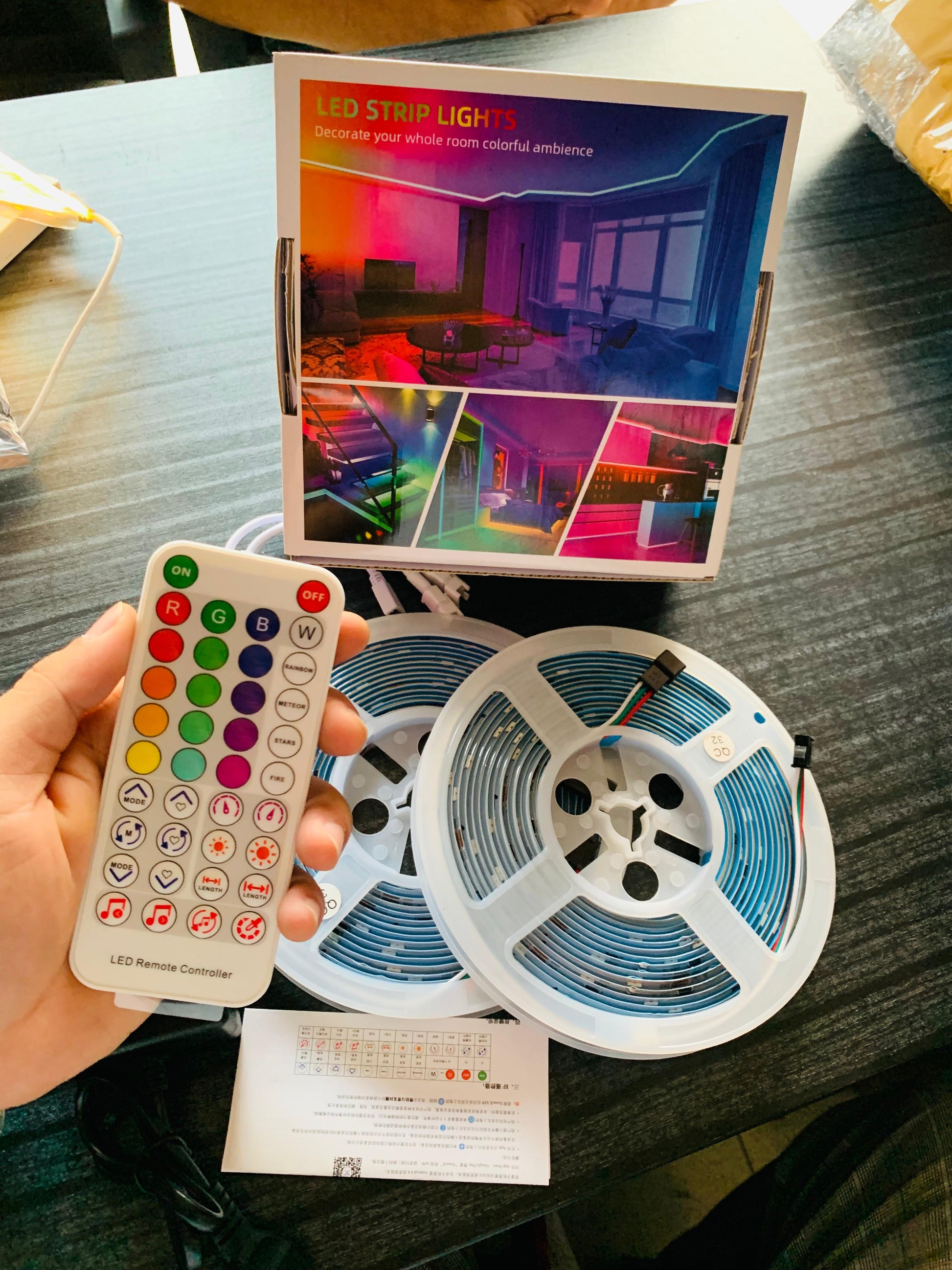

Remote Control Handset: 38-key infrared wireless remote control with rubber membrane buttons

App Connectivity: Bluetooth wireless protocol supporting dynamic mobile application tracking

Lighting Functions and Modes

Static monochrome colors including red, green, blue, white, and multiple mixed shades

Adjustable brightness intensity levels from dim ambient to maximum output

Dynamic flash, fade, strobe, and smooth color jump transition programs

Advanced sound-reactive music sync profiles via the integrated controller microphone

Automated schedule timer functionality manageable through the mobile phone application

Product Benefits

Dual roll kit architecture provides complete coverage for large-scale perimeters including bedrooms, ceilings, and commercial display shelves.

True SMD 5050 color chips deliver high lumen performance and pure primary colors compared to lower-grade alternative light models.

Ultra-pliable circuit ribbon allows clean bending around corner transitions and complex framing geometry.

Smart Bluetooth program interface provides seamless proximity control over color spectrum wheels and customization settings.

Low working voltage and low heat emission make the light ribbons completely safe to handle and mount on wooden or fabric backdrops.

How To Use

Clean the target mounting surface with a dry cloth to eliminate any dust, moisture, or surface oils before placement.

Peel away the protective paper film from the back of the light ribbon to expose the high-bond adhesive track.

Press the flexible strip firmly down along the installation path, avoiding sharp kinks directly over individual LED nodes.

Connect the four-pin output cables from both light rolls into the dual output sockets of the SP611E controller receiver hub.

Plug the 12V power supply cord into the DC input port of the receiver hub, then connect the main plug to a live wall socket.

Download the dedicated smartphone application by scanning the QR code printed on the receiver hub housing, turn on your mobile Bluetooth, and pair with the device.

Use the application interface or direct the 38-key infrared remote control toward the receiver hub to operate the color variations, timing loops, and audio reactive modes.
